Halar® 901 ECTFE
Ethylene-Chlorotrifluoroethylene Sheet Based On Halar® 901 Resin
Halar® 901 is a co-polymer of ethylene and CTFE that is strong, stiff, impact resistant, and features excellent thermal properties and chemical permeation resistance. It ranks as ultrapure, is suitable for wetted parts, and can be welded and formed readily. Halar® ECTFE resists the full array of Semicon process chemicals and provides a cost effective option for chemical and corrosion resistance in higher-range temperature environments.
The copolymer’s exceedingly smooth surface makes Halar® ECTFE ideal for resisting nucleation, sticking & fouling. Manufactured from 100% FM Listed Halar© 901 resin, it is an excellent low-cost alternative or replacement for PFA where temperature applications are limited to 140° C and lower.
Advantages
- High purity
- High heat resistance & thermal stability
- Superior corrosion resistance—resists full range of Semicon process chemicals (0–14pH acids and alkalines, oxidizers, and solvents)
- FM 4910 listed resin (JI 3012945)
- Thermoforms, welds easily with proper parameters
- Impact resistant
- Ultra-smooth surface characteristics
- Low co-efficient of friction
Proven Applications
- Semicon wet process tools
- Process tanks, liners and components
- Fire safe componentry
- Fluid handling systems
- Highly corrosive chemical storage
- Tank & Reactor Vessels
- Pulp & Paper Production
- Alkaline Treatment Systems

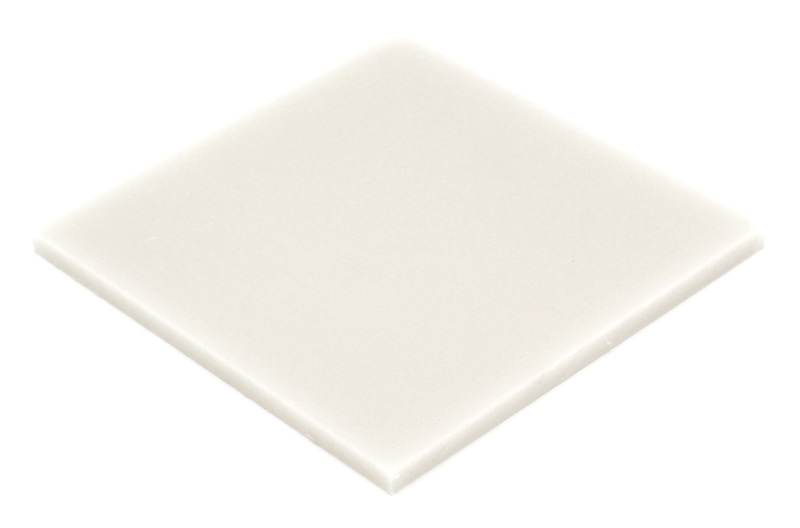

Unbacked Sheets
- Sheet sizes: 2’x4′, 4’x8′, 4’x10′
- Gauges: 1/8″ – 1″ (3mm – 25mm)
Fabric-Backed Rolls
- Roll size: 48”x600” (50’)
- Gauges: .060, .090, .118
Available Fabric Backings
- Polyester
- Aramid
Welding Rod
- 1/8″, 5/32″ Round Rod
Product Photos

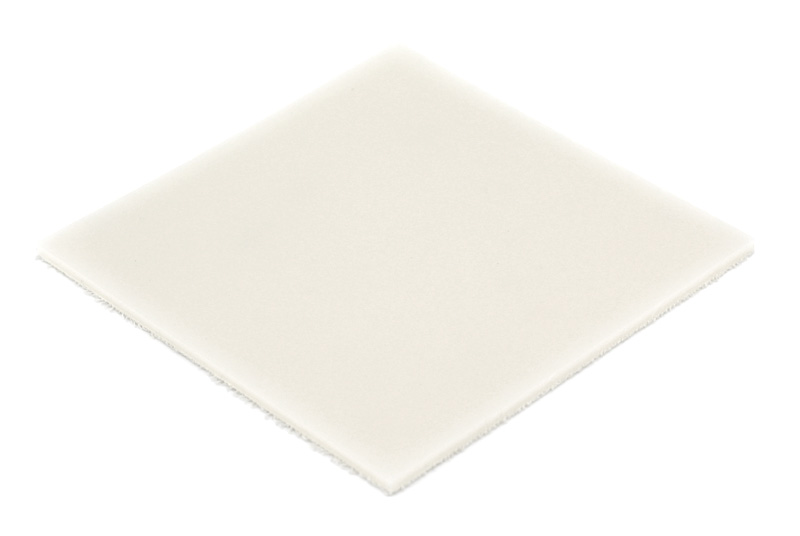

Halar® 901 ECTFE – Aramid-Backed
Halar® 901 ECTFE – Polyester-Backed
Sample Applications
HFPM Halar ECTFE Lined Vessel
HFPM Halar ECTFE Lined Vessel Interior 1
