ETFE
Ethylene-Tetrafluoroethylene Sheet
ETFE (Ethylene Tetraflouroethylene) is a premium fluoropolymer that offers an excellent balance of properties. ETFE is preferred for applications or environments where extraordinary chemical inertness, permeation resistance, low surface energy, and/or mechanical toughness is required. It is a “neat polymer” that does not require the use of additives to make thermoplastically processible. As a result, ETFE is consider a “wetted parts” suitable polymer for semicon end-use.
Sheets made from ETFE are inert to 0-14pH chemicals, solvents, and oxidizers. The recommended upper service temperature is 155°C (311°F); useful properties are retained at cryogenic ranges. It boasts excellent dielectric properties, is inherently flame resistant, and emits low smoke. Its non-stick surface is extremely resistant to chemical staining. It also has outstanding impact strength, and resists cut-through, abrasion, and environmental stress cracking.
Advantages
- Chemically inert to solvents, oxidizers, and 0-14pH chemicals
- Non-stick surface with extremely low surface energy
- High resistance to environmental stress
- Retains useful properties at cryogenic temperatures
- Outstanding impact strength, cut-through, and abrasion resistance
- Greatly enhanced flex life
Proven Applications
- Process tanks, liners and components
- Fluid handling systems
- Highly corrosive chemical storage
- Tank & Reactor Vessels
- Pulp & Paper Production
- Alkaline Treatment Systems

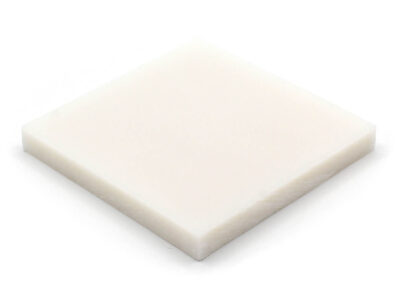

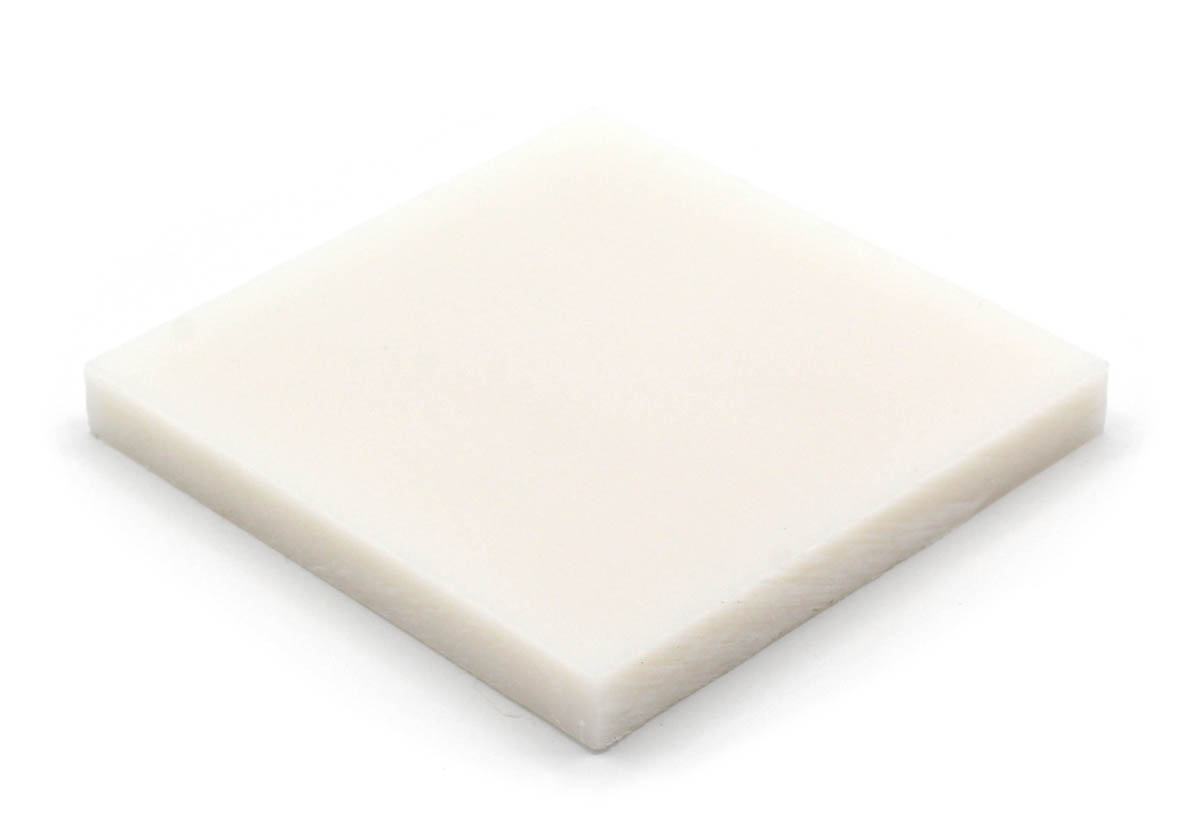

Two-Side Polished
- 48”x96”; 48”x48”
- Gauge: 0.250” – 1.0”

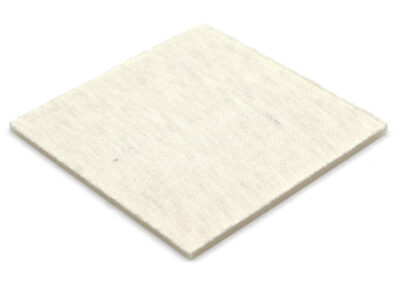

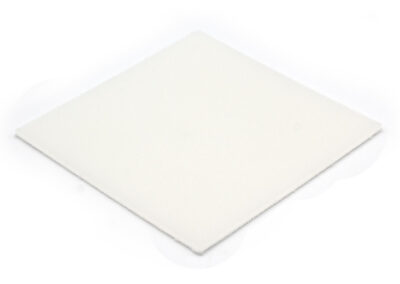

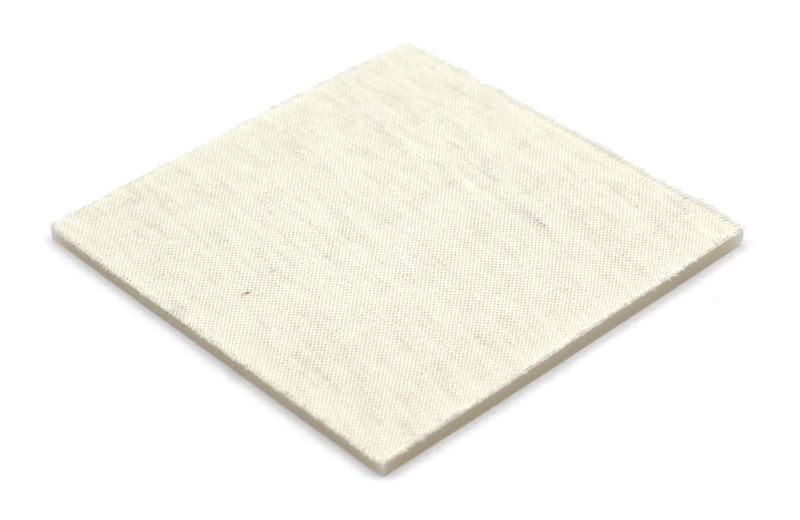

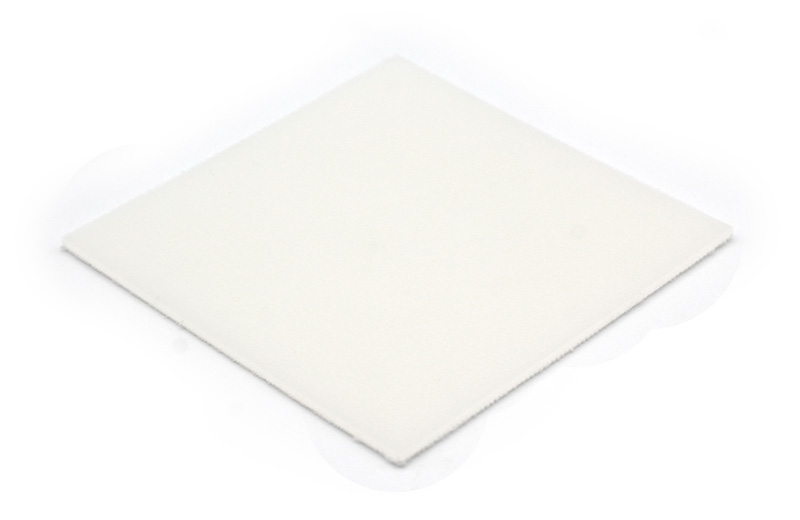

Fabric Backed
- 1.8mm, 2.3mm, 3.0mm, 4.0mm
thickness - Flat sheet 48” wide
- Rolls Standard 50’
- Partial rolls and custom-length rolls available
Available Fabric Backings
- Aramid

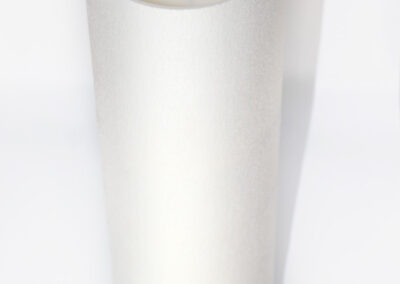

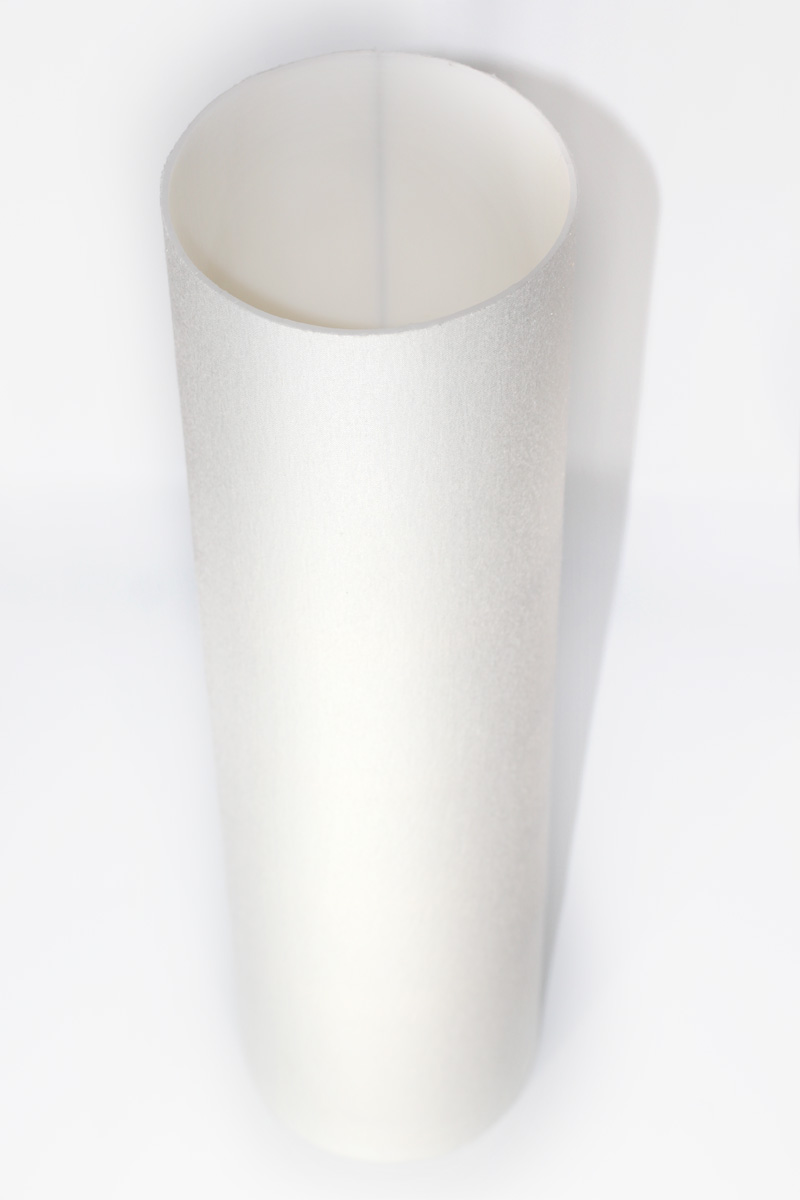

Product Photos
Sample Applications
